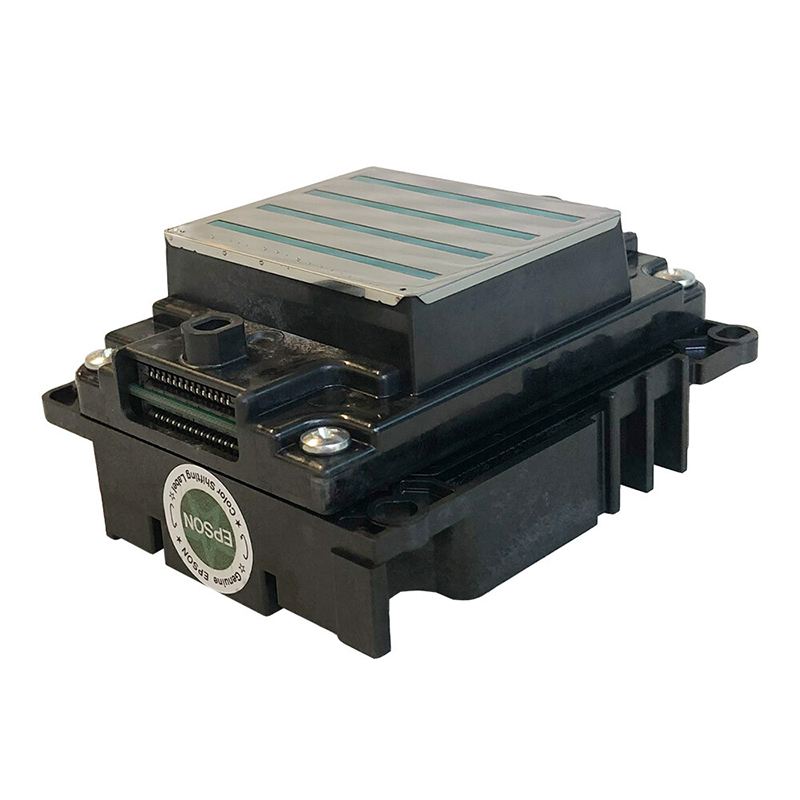

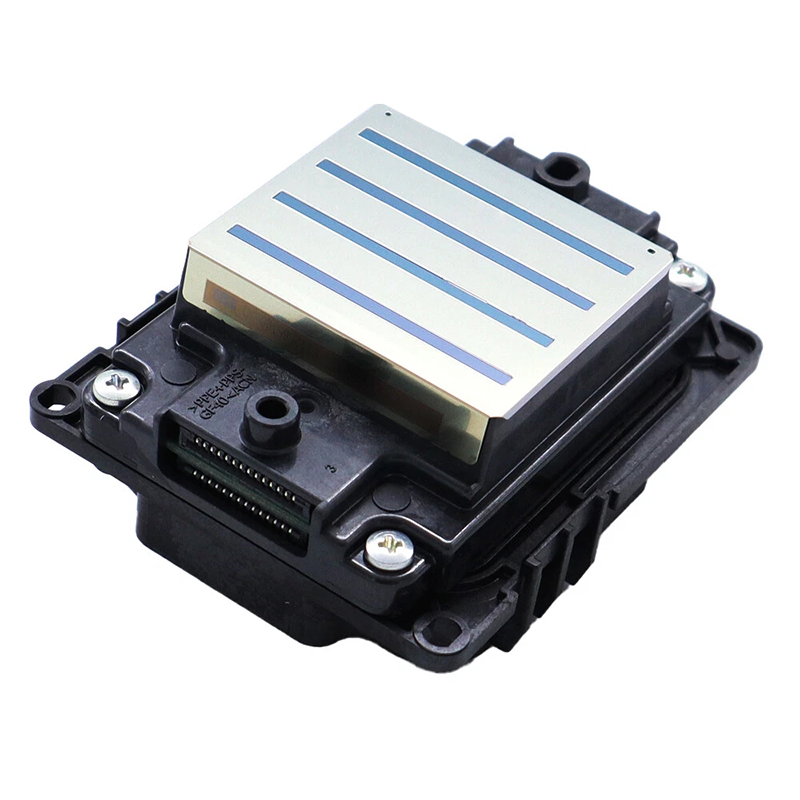

The Epson i3200 U1 printhead is a cost-effective printhead that is suitable for UV.
Unleash the power of UV printing with the Epson i3200 U1 Series UV Curable Print Head. Designed with precision and innovation, this print head brings your creative visions to life with vibrant and durable prints.
Epson i3200 Printhead Parameter
| Product name | Epson i3200-U1 | Epson i3200-E1 | Epson i3200-A1 | |
| Ink type | UV | Eco Solvent | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |||

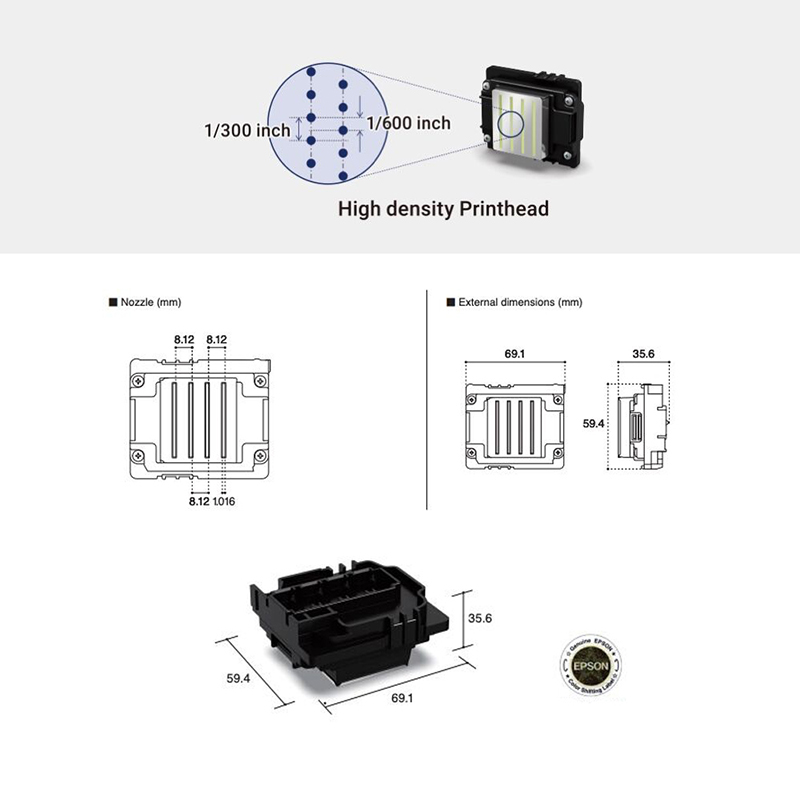

| Width x Depth x Height | 69.1x 59.4 x 35.6 mm | |||
| Weight | 82 g | |||
| Number of nozzle | 3200 | |||
| Nozzle pitch/nozzle row | 1/300 inch | |||
| Nozzle rows | 8 rows | |||
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |||
| Max. number of colour inks | 4 colours | |||
| Effective print width | 33.8 mm (1.33 inches) | |||
| Droplet ejection performance | Binary | 5 pl at 43.2 kHz | 6 pl at 43.2 kHz | |
| 3 levels grey scale | 6, 12.5 pl at 21.6 kHz | 6.3, 12.3 pl at 21.6 kHz | ||
| 4 levels grey scale | 3.8, 6.2, 9.3 pl at 21.6 kHz | 3.8, 5.5, 8.7 pl at 21.6 kHz | 3.8, 6.1, 9.4 pl at 21.6 kHz | |
| Viscosity range | 5-7 mPa･s | 3-4 mPa･s | ||
